| Product number | Rozmer závitu |
|---|

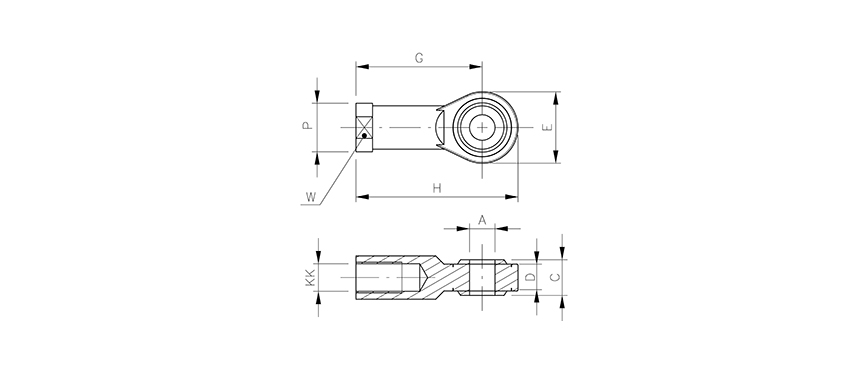

| Typ | KK | A | C | D | E | G | H | P | W |
|---|---|---|---|---|---|---|---|---|---|
| UK-M4 | M 4 | 5 | 8 | 6 | 18 | 27 | 36,5 | 9 | 11 |
| UK-M6 | M 6 | 6 | 9 | 6,75 | 20 | 30 | 40,5 | 11 | 13 |
| UK-M8 | M 8 | 8 | 12 | 9 | 24 | 36 | 48,5 | 14 | 16 |
| UK-M10x1,25 | M 10 x 1,25 | 10 | 14 | 10,5 | 28 | 43 | 57,5 | 17 | 19 |
| UK-M12x1,25 | M 12 x 1,25 | 12 | 16 | 12 | 32 | 50 | 66,5 | 19 | 22 |
| UK-M16x1,5 | M 16 x 1,5 | 16 | 21 | 15 | 42 | 64 | 85,5 | 22 | 27 |
| UK-M20x1,5 | M 20 x 1,5 | 20 | 25 | 18 | 50 | 77 | 102,5 | 30 | 34 |
| UK-M27x2 | M 27 x 2 | 30 | 37 | 25 | 70 | 110 | 145,5 | 41 | 50 |
| ATEX zóna: | II 2 GD c T6 -20°C<Tamb<80°C |
|---|---|
| Availability: | In stock |
| Materiál: | Oceľ |
| Rozmer závitu: | M8 |
