PGV-131-B76-6/4BP
2/2-cestný pneumaticky riadený ventil | séria PGV | NBR
There is an option to record special requests on the order summary page
PGV-131-B76-6/4BP
2/2-cestný pneumaticky riadený ventil | séria PGV | NBR
| Product number | Kv hodnota | voda | Menovitý priemer | Pracovný tlak | Prípoj |
|---|

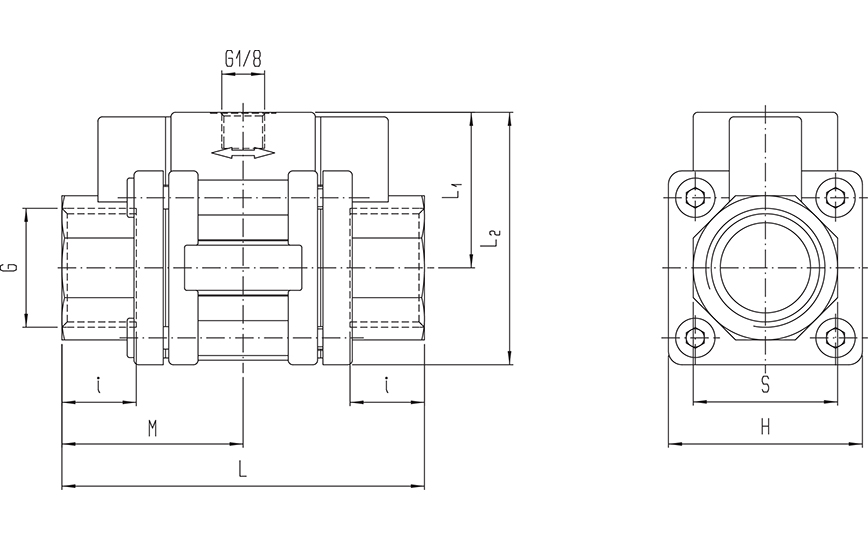

| Typ | Prípoj G | L | I | M | L1 | L2 | H | S |
|---|---|---|---|---|---|---|---|---|
| PGV-131-B76-1/2BP | G 1/2" | 67 | 13,5 | 33,5 | 34 | 55,5 | 43 | 27 |
| PGV-131-B76-1/2PP | G 1/2" | 67 | 13,5 | 33,5 | 34 | 55,5 | 43 | 27 |
| PGV-131-B76-1/2FP | G 1/2" | 67 | 13,5 | 33,5 | 34 | 55,5 | 43 | 27 |
| PGV-131-B76-3/4BP | G 3/4" | 80,5 | 15,5 | 40 | 34 | 55,5 | 43 | 32 |
| PGV-131-B76-3/4PP | G 3/4" | 80,5 | 15,5 | 40 | 34 | 55,5 | 43 | 32 |
| PGV-131-B76-3/4FP | G 3/4" | 80,5 | 15,5 | 40 | 34 | 55,5 | 43 | 32 |
| PGV-131-B76-1BP | G 1" | 94 | 17 | 47,5 | 42 | 71,5 | 59 | 41 |
| PGV-131-B76-1PP | G 1" | 94 | 17 | 47,5 | 42 | 71,5 | 59 | 41 |
| PGV-131-B76-1FP | G 1" | 94 | 17 | 47,5 | 42 | 71,5 | 59 | 41 |
| PGV-131-B76-5/4BP | G 5/4" | 112 | 19 | 56 | 42 | 71,5 | 59 | 50 |
| PGV-131-B76-5/4PP | G 5/4" | 112 | 19 | 56 | 42 | 71,5 | 59 | 50 |
| PGV-131-B76-5/4FP | G 5/4" | 112 | 19 | 56 | 42 | 71,5 | 59 | 50 |
| PGV-131-B76-6/4BP | G 6/4" | 132 | 21 | 66 | 55 | 99 | 87 | 55 |
| PGV-131-B76-6/4PP | G 6/4" | 132 | 21 | 66 | 55 | 99 | 87 | 55 |
| PGV-131-B76-6/4FP | G 6/4" | 132 | 21 | 66 | 55 | 99 | 87 | 55 |
| PGV-131-B76-2BP | G 2" | 160 | 24,5 | 80 | 55 | 99 | 87 | 70 |
| PGV-131-B76-2PP | G 2" | 160 | 24,5 | 80 | 55 | 99 | 87 | 70 |
| PGV-131-B76-2FP | G 2" | 160 | 24,5 | 80 | 55 | 99 | 87 | 70 |
| Funkcia: | 2/2-cestný |
|---|---|
| Kv hodnota | voda: | 29,5 m3/hod |
| Materiál tela ventilu: | Meď |
| Menovitý priemer: | DN 40 |
| Pracovné médium: | Stlačený vzduch, voda, olej |
| Pracovný tlak: | 0,2...16 bar |
| Prípoj: | G 1.1/2" |
| Riadenie/ovládanie: | Pneumaticky riadené |
| Riadiaci prípoj: | G 1/8" |
| Riadiaci tlak: | Zhodný, alebo vyšší od pracovného tlaku (max. 16 bar) |
| Teplotný rozsah: | -10°C…+90°C |
