DL 80
Pätkové upevnenie
There is an option to record special requests on the order summary page
DL 80
Pätkové upevnenie
| Product number | Priemer piestu |
|---|

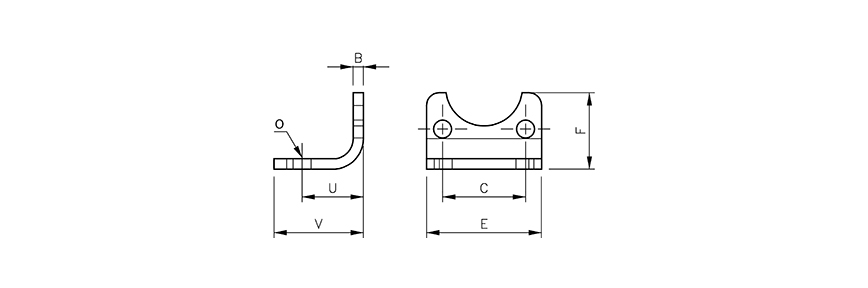

| Typ | Priemer piestu | B | C | E | F | O | U | V |
|---|---|---|---|---|---|---|---|---|
| DL 32 | Ø 32 | 4 | 32,5 | 45 | 30 | 7 | 24 | 35 |
| DL 40 | Ø 40 | 4 | 38 | 52 | 30 | 10 | 28 | 36 |
| DL 50 | Ø 50 | 5 | 46,5 | 65 | 36 | 10 | 32 | 47 |
| DL 63 | Ø 63 | 5 | 56,5 | 75 | 35 | 10 | 32 | 45 |
| DL 80 | Ø 80 | 6 | 72 | 95 | 47 | 12 | 41 | 55 |
| DL 100 | Ø 100 | 6 | 89 | 115 | 53 | 14 | 41 | 57 |
| DL 125 | Ø 125 | 8 | 110 | 140 | 70 | 16 | 45 | 64 |
| ATEX zóna: | II 2 GD c T6 -20°C<Tamb<80°C |
|---|---|
| Availability: | In stock |
| Materiál: | Oceľ |
| Priemer piestu: | Ø63 |
