DCT 80
Výkyvné upevnenie | pre valce s F profilom (HIF)
There is an option to record special requests on the order summary page
DCT 80
Výkyvné upevnenie | pre valce s F profilom (HIF)
3D model
Download| Product number |
|---|

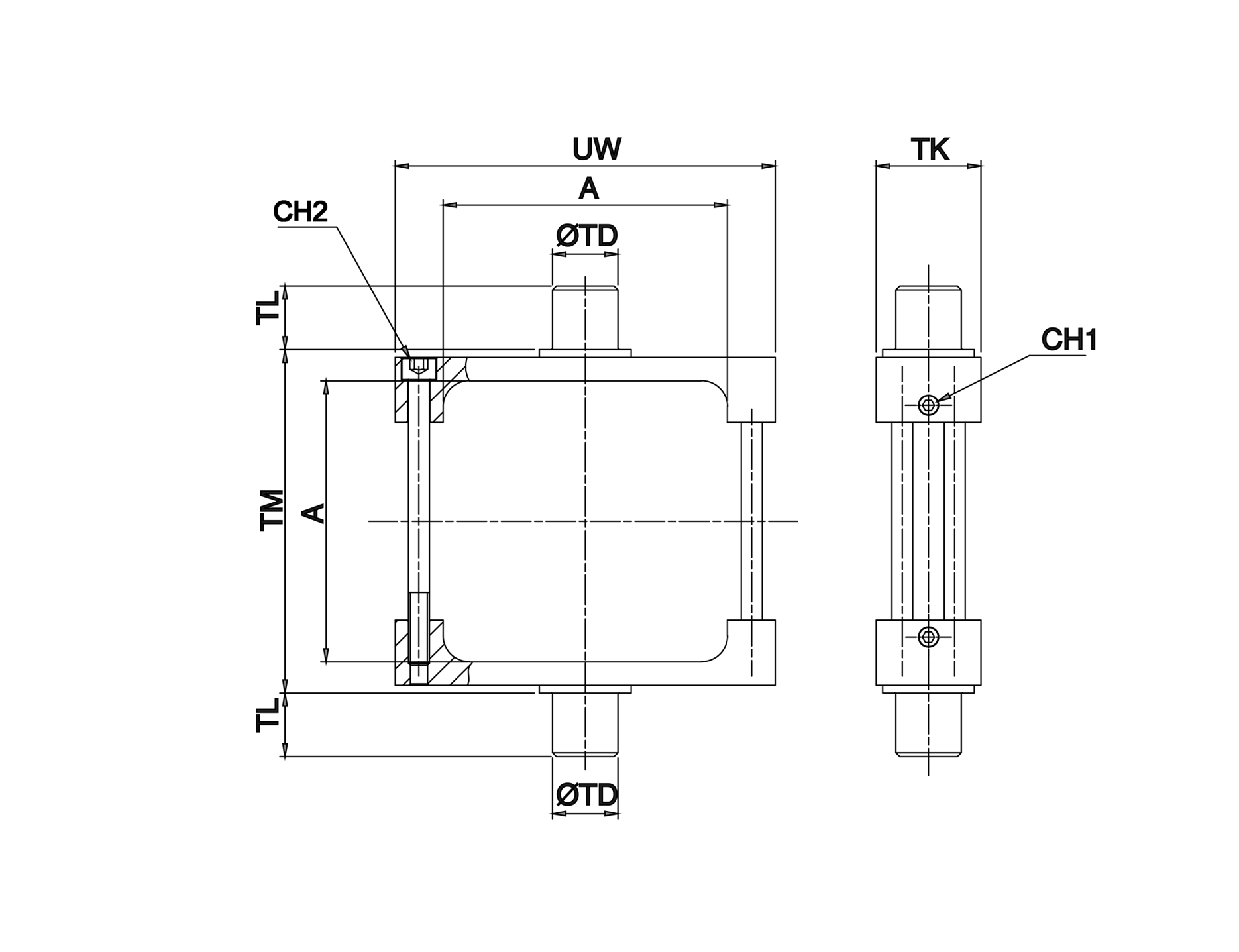

| Typ | Priemer piestu | A | CH1 | CH2 | TD | TK | TL | TM | UW |
|---|---|---|---|---|---|---|---|---|---|
| DCT 32 | Ø 32 | 45 | 3 | 3 | 12 | 25 | 11,5 | 50 | 65 |
| DCT 40 | Ø 40 | 51,8 | 3 | 4 | 16 | 25 | 16 | 63 | 75 |
| DCT 50 | Ø 50 | 60,7 | 3 | 5 | 16 | 30 | 16 | 75 | 95 |
| DCT 63 | Ø 63 | 72,2 | 3 | 5 | 20 | 30 | 20 | 90 | 105 |
| DCT 80 | Ø 80 | 91,2 | 3 | 5 | 20 | 30 | 20 | 110 | 130 |
| DCT 100 | Ø 100 | 108,2 | 4 | 6 | 25 | 40 | 24,5 | 132 | 145 |
| DCT 125 | Ø 125 | 135,3 | 4 | 6 | 25 | 40 | 24,5 | 160 | 176 |
