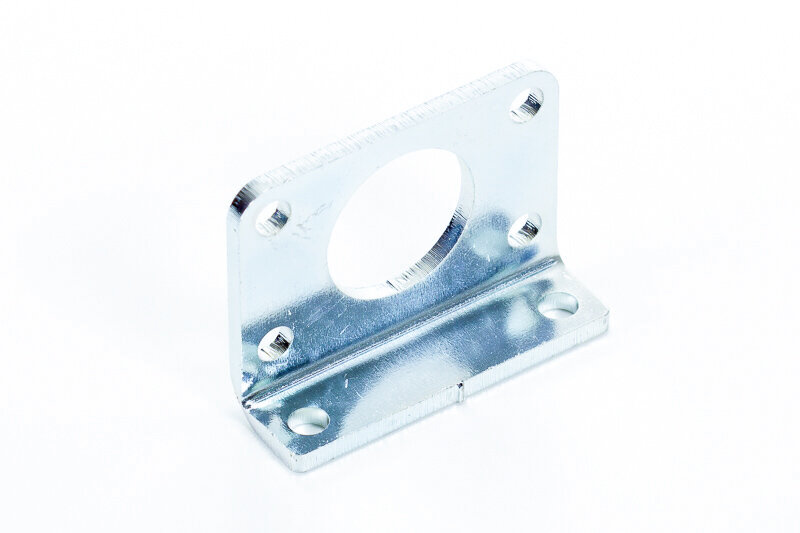

APD 50
Pätkové upevnenie
There is an option to record special requests on the order summary page
APD 50
Pätkové upevnenie
| Product number | Priemer piestu |
|---|

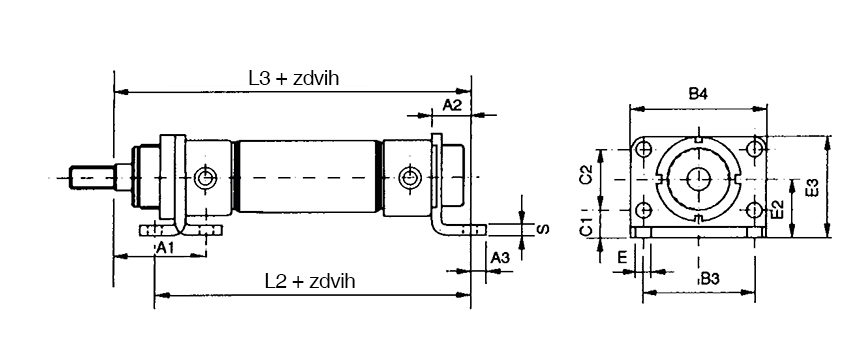

| Typ | Priemer piestu | E | E2 | E3 | C1 | C2 | L2 | L3 | B3 | B4 | S | A1 | A2 | A3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APD 32 | Ø 32 | 7 | 28 | 49 | 14 | 28 | 124 | 148 | 52 | 66 | 4 | 48 | 14 | 7 |
| APD 40 | Ø 40 | 9 | 33 | 58 | 18 | 30 | 151 | 176 | 60 | 80 | 5 | 60 | 20 | 10 |
| APD 50 | Ø 50 | 9 | 40 | 70 | 20 | 40 | 160 | 190 | 70 | 90 | 6 | 64 | 20 | 10 |
| APD 63 | Ø 63 | 9 | 45 | 80 | 20 | 50 | 164 | 194 | 76 | 96 | 6 | 65 | 20 | 10 |
| ATEX zóna: | II 2 GD c T6 -20°C<Tamb<80°C |
|---|---|
| Materiál: | Oceľ |
| Priemer piestu: | Ø40 |
