A-57020-12-1/4
Push-In rýchlospojka Priamy tvar | kovové prevedenie
There is an option to record special requests on the order summary page
A-57020-12-1/4
Push-In rýchlospojka Priamy tvar | kovové prevedenie

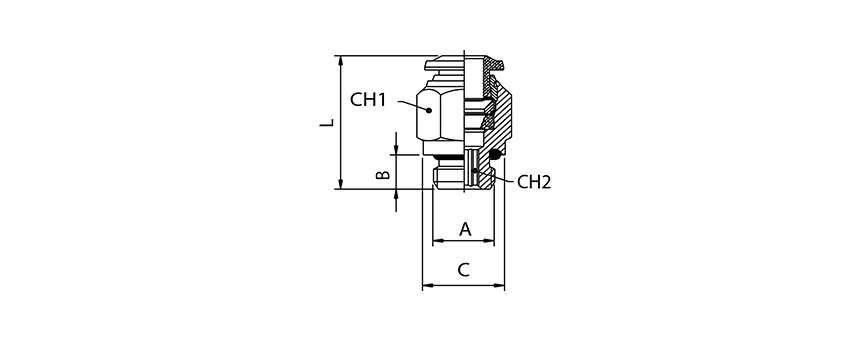

| Product number | Prípoj | Prípoj | vonkajší priemer hadice |
|---|
| Typ | Priemer hadice | Prípoj A | B | C | L | CH1 | CH2 |
|---|---|---|---|---|---|---|---|
| A-57020-4-M5 | 4 | M 5 | 4 | 8 | 21 | 10 | 2 |
| A-57020-4-1/8 | 4 | G 1/8" | 6 | 13 | 20 | 10 | 3 |
| A-57020-4-1/4 | 4 | G 1/4" | 8 | 16 | 19,5 | 16 | 3 |
| A-57020-5-M5 | 5 | M 5 | 4 | 8 | 23,5 | 12 | 2 |
| A-57020-5-1/8 | 5 | G 1/8" | 6 | 13 | 22 | 12 | 4 |
| A-57020-6-M5 | 6 | M 5 | 4 | 10 | 24,5 | 13 | 2 |
| A-57020-6-1/8 | 6 | G 1/8" | 6 | 13 | 23,5 | 13 | 4 |
| A-57020-6-1/4 | 6 | G 1/4" | 8 | 16 | 23,5 | 13 | 4 |
| A-57020-6-3/8 | 6 | G 3/8" | 9 | 20 | 25 | 13 | 4 |
| A-57020-6-1/2 | 6 | G 1/2" | 10 | 25 | 27 | 13 | 4 |
| A-57020-8-1/8 | 8 | G 1/8" | 6 | 13 | 25 | 14 | 5 |
| A-57020-8-1/4 | 8 | G 1/4" | 8 | 16 | 23 | 14 | 6 |
| A-57020-8-3/8 | 8 | G 3/8" | 9 | 20 | 24 | 14 | 6 |
| A-57020-8-1/2 | 8 | G 1/2" | 10 | 25 | 26,5 | 14 | 6 |
| A-57020-10-1/4 | 10 | G 1/4" | 8 | 16 | 30,5 | 17 | 6 |
| A-57020-10-3/8 | 10 | G 3/8" | 9 | 20 | 27,5 | 17 | 8 |
| A-57020-10-1/2 | 10 | G 1/2" | 10 | 25 | 27 | 17 | 8 |
| A-57020-12-1/4 | 12 | G 1/4" | 8 | 16 | 34,5 | 20 | 6 |
| A-57020-12-3/8 | 12 | G 3/8" | 9 | 20 | 34 | 20 | 8 |
| A-57020-12-1/2 | 12 | G 1/2" | 10 | 25 | 31 | 22 | 10 |
| A-57020-14-3/8 | 14 | G 3/8" | 9 | 20 | 35 | 21 | 10 |
| A-57020-14-1/2 | 14 | G 1/2" | 10 | 25 | 32 | 22 | 10 |
| A-57020-6-M12x1 | 6 | M 12 x 1 | 8 | 15 | 23,5 | 13 | 4 |
| A-57020-6-M12x1,25 | 6 | M 12 x 1,25 | 8 | 15 | 23,5 | 13 | 4 |
| A-57020-6-M12x1,5 | 6 | M 12 x 1,5 | 8 | 15 | 23,5 | 13 | 4 |
| A-57020-8-M12x1,5 | 8 | M 12 x 1,5 | 8 | 15 | 27,5 | 14 | 6 |
| Availability: | In stock |
|---|---|
| Fixačná objímka: | Poniklovaná meď |
| Materiál: | Poniklovaná meď |
| Materiál krúžku: | Technopolymér |
| Materiál oporného krúžku: | Technopolymér |
| Materiál tela: | Poniklovaná meď |
| Materiál tesnenia: | NBR |
| Materiál upínacích pazúrov: | Nehrdzavejúca oceľ |
| Menovitý tlak: | -0,9…20 bar |
| Pracovné médium: | Stlačený vzduch, vákuum, voda,para |
| Pracovný tlak: | -0,9…20 bar |
| Prevedenie: | Závitová |
| Prípoj: | G 1/4" |
| Prípoj | vonkajší priemer hadice: | Ø12 |
| Rozmer: | Ø12 |
| Teplotný rozsah: | -20°C…+80°C |
