A-13230-8-3/8
Spojka so zárezným prstencom tvar L
There is an option to record special requests on the order summary page
A-13230-8-3/8
Spojka so zárezným prstencom tvar L
| Product number |
|---|

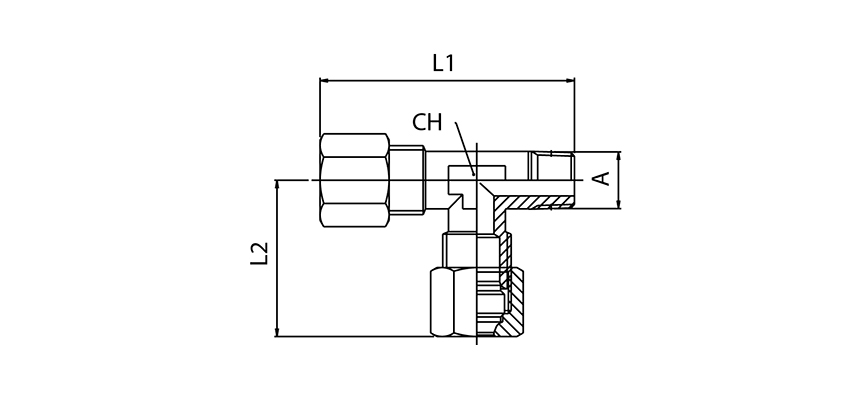

| Typ | Priemer hadice | Prípoj A | L1 | L2 | CH |
|---|---|---|---|---|---|
| A-13230-4-1/8 | 4 | R 1/8" | 37,5 | 22,5 | 8 |
| A-13230-6-1/8 | 6 | R 1/8" | 40 | 25 | 9 |
| A-13230-6-1/4 | 6 | R 1/4" | 44 | 24 | 9 |
| A-13230-8-1/8 | 8 | R 1/8" | 45,5 | 28,5 | 12 |
| A-13230-8-1/4 | 8 | R 1/4" | 49 | 28,5 | 12 |
| A-13230-8-3/8 | 8 | R 3/8" | 52 | 28,5 | 13 |
| A-13230-10-1/4 | 10 | R 1/4" | 55 | 32 | 13 |
| A-13230-10-3/8 | 10 | R 3/8" | 55,5 | 32 | 13 |
| A-13230-12-3/8 | 12 | R 3/8" | 58,5 | 35 | 14 |
| A-13230-12-1/2 | 12 | R 1/2" | 60 | 35,5 | 15 |
| A-13230-14-1/2 | 14 | R 1/2" | 67 | 35,5 | 18 |
| Materiál tesnenia: | Bez tesnenia |
|---|---|
| Prevedenie: | Závitová |
