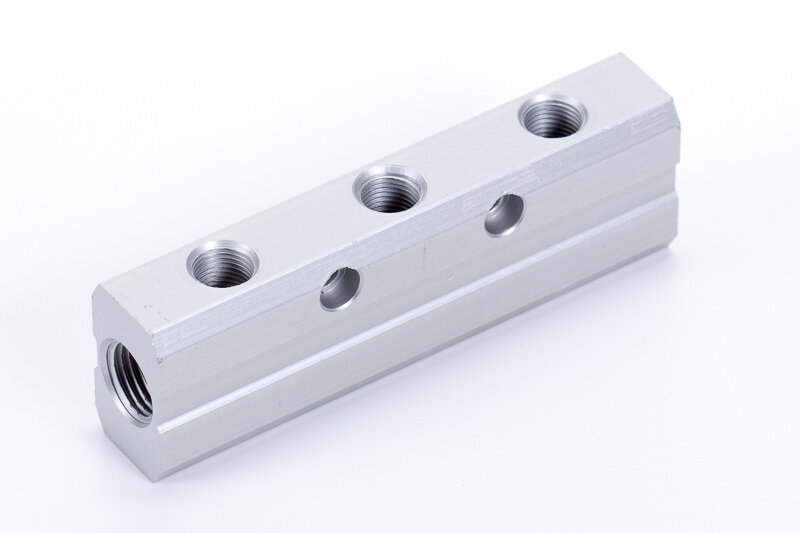

A-06048-3/8-1/4-4
Rozdeľovacia lišta | G3/8" | G1/4"
There is an option to record special requests on the order summary page
A-06048-3/8-1/4-4
Rozdeľovacia lišta | G3/8" | G1/4"
| Product number | Počet prípojov |
|---|

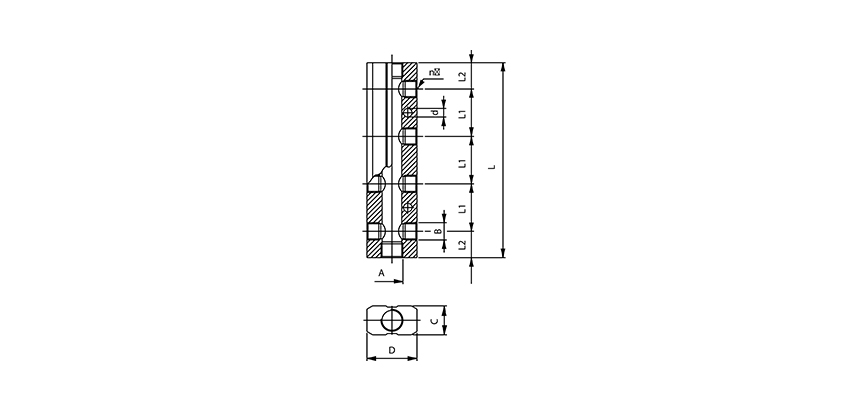

| Typ | Prípoj A | Prípoj B | Počet prípojov | C | D | L1 | L2 | L | d |
|---|---|---|---|---|---|---|---|---|---|
| A-06048-1/4-1/8-2 | G 1/4" | G 1/8" | 2+2 | 18 | 30 | 30 | 17,5 | 65 | 4,5 |
| A-06048-1/4-1/8-3 | G 1/4" | G 1/8" | 3+2 | 18 | 30 | 30 | 17,5 | 95 | 4,5 |
| A-06048-1/4-1/8-4 | G 1/4" | G 1/8" | 4+2 | 18 | 30 | 30 | 17,5 | 125 | 4,5 |
| A-06048-1/4-1/8-5 | G 1/4" | G 1/8" | 5+2 | 18 | 30 | 30 | 17,5 | 155 | 4,5 |
| A-06048-1/4-1/8-6 | G 1/4" | G 1/8" | 6+2 | 18 | 30 | 30 | 17,5 | 185 | 4,5 |
| A-06048-3/8-1/4-2 | G 3/8" | G 1/4" | 2+2 | 22 | 38 | 36 | 20 | 76 | 5,5 |
| A-06048-3/8-1/4-3 | G 3/8" | G 1/4" | 3+2 | 22 | 38 | 36 | 20 | 112 | 5,5 |
| A-06048-3/8-1/4-4 | G 3/8" | G 1/4" | 4+2 | 22 | 38 | 36 | 20 | 148 | 5,5 |
| A-06048-3/8-1/4-5 | G 3/8" | G 1/4" | 5+2 | 22 | 38 | 36 | 20 | 184 | 5,5 |
| A-06048-3/8-1/4-6 | G 3/8" | G 1/4" | 6+2 | 22 | 38 | 36 | 20 | 220 | 5,5 |
| A-06048-1/2-3/8-2 | G 1/2" | G 3/8" | 2+2 | 26 | 44 | 40 | 25 | 90 | 5,5 |
| A-06048-1/2-3/8-3 | G 1/2" | G 3/8" | 3+2 | 26 | 44 | 40 | 25 | 130 | 5,5 |
| A-06048-1/2-3/8-4 | G 1/2" | G 3/8" | 4+2 | 26 | 44 | 40 | 25 | 170 | 5,5 |
| A-06048-1/2-3/8-5 | G 1/2" | G 3/8" | 5+2 | 26 | 44 | 40 | 25 | 210 | 5,5 |
| A-06048-1/2-3/8-6 | G 1/2" | G 3/8" | 6+2 | 26 | 44 | 40 | 25 | 250 | 5,5 |
| Materiál: | Hliník |
|---|---|
| Materiál tesnenia: | Bez tesnenia |
| Počet prípojov: | 2 + 4 ks |
| Prípoj: | G 3/8" |
| Prípoj | vonkajší priemer hadice: | G 1/4" |
| Teplotný rozsah: | 0...+70°C |
