252M-1/8-1/4
Redukcia | 1 x vnútorný, 1 x vonkajší závit
There is an option to record special requests on the order summary page
252M-1/8-1/4
Redukcia | 1 x vnútorný, 1 x vonkajší závit
| Product number |
|---|

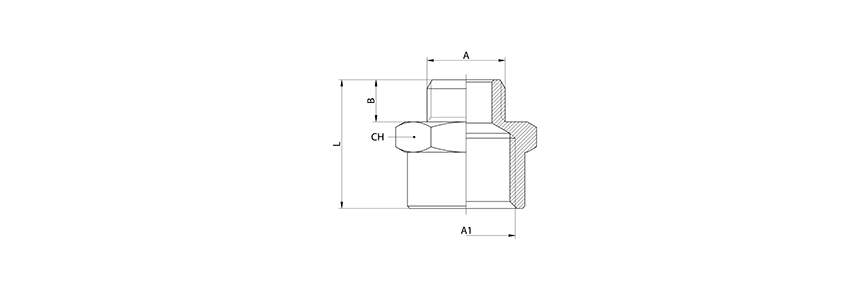

| Typ | Prípoj A | Prípoj A1 | B | L | CH |
|---|---|---|---|---|---|
| 252M-M5-M5 | M 5 | M 5 | 4 | 11 | 8 |
| 252M-M5-1/8 | M 5 | G 1/8" | 4 | 14,5 | 14 |
| 252M-1/8-1/8 | G 1/8" | G 1/8" | 6 | 17 | 14 |
| 252M-1/8-1/4 | G 1/8" | G 1/4" | 6 | 20,5 | 17 |
| 252M-1/8-3/8 | G 1/8" | G 3/8" | 6 | 21,5 | 22 |
| 252M-1/8-1/2 | G 1/8" | G 1/2" | 6 | 24 | 24 |
| 252M-1/4-1/4 | G 1/4" | G 1/4" | 8 | 22,5 | 17 |
| 252M-1/4-3/8 | G 1/4" | G 3/8" | 8 | 23,5 | 22 |
| 252M-1/4-1/2 | G 1/4" | G 1/2" | 8 | 26,5 | 26 |
| 252M-3/8-3/8 | G 3/8" | G 3/8" | 9 | 24,5 | 22 |
| 252M-3/8-1/2 | G 3/8" | G 1/2" | 9 | 27,5 | 26 |
| 252M-1/2-1/2 | G 1/2" | G 1/2" | 10 | 28,5 | 26 |
| Availability: | In stock |
|---|---|
| Materiál: | Poniklovaná meď |
| Materiál tesnenia: | Bez tesnenia |
| Menovitý tlak: | 0…50 bar |
| Pracovné médium: | Stlačený vzduch |
| Pracovný tlak: | 0…50 bar |
| Prevedenie: | Závitová |
| Prípoj: | G 1/8" |
| Prípoj | vonkajší priemer hadice: | G 1/4" |
| Teplotný rozsah: | -40°C…+120°C |
